TPMS – Tire Pressure Monitoring Systems

Smart tire pressure & temperature monitoring for heavy-duty fleets — improving safety, efficiency, and real-time visibility for trucks, buses, and trailers.

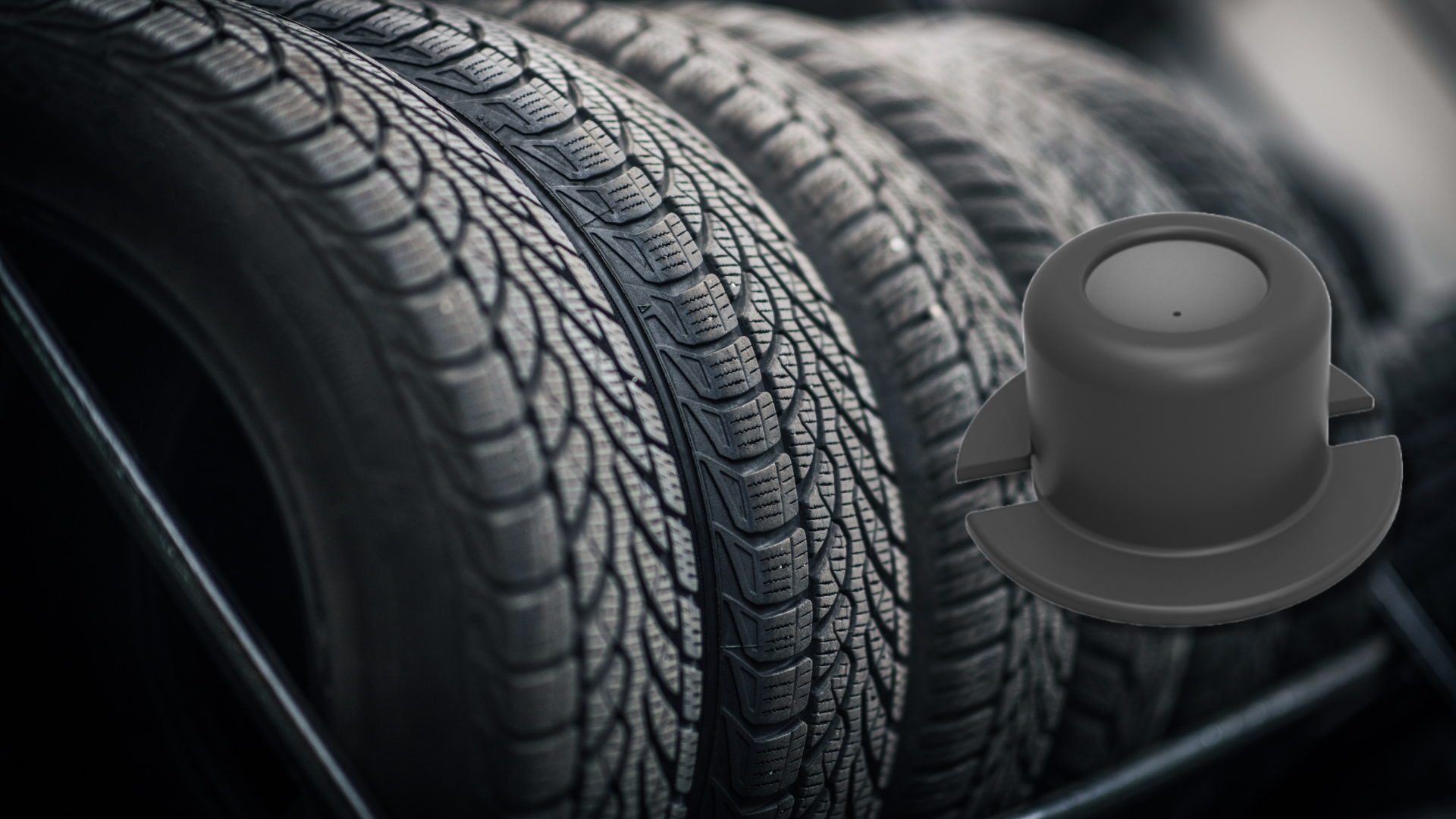

Internal TPMS Sensor - Intelligent tire pressure and temperature monitoring sensor for heavy-duty fleets with 5-year battery life

Internal TPMS Sensor – Intelligent Tire Sensor

Internal tire-mounted BLE/RF sensor providing continuous pressure, temperature, and motion monitoring for heavy-duty vehicles. Designed for harsh environments with long battery life and precise diagnostics.

Technical Features:
Accurate pressure & temperature monitoring
LF wake-up for ultra-low power
Integrated accelerometer
Battery & sensor health diagnostics
Fast and slow leak detection
Up to 5-year autonomy, –40°C to +125°C
Request a Quotation

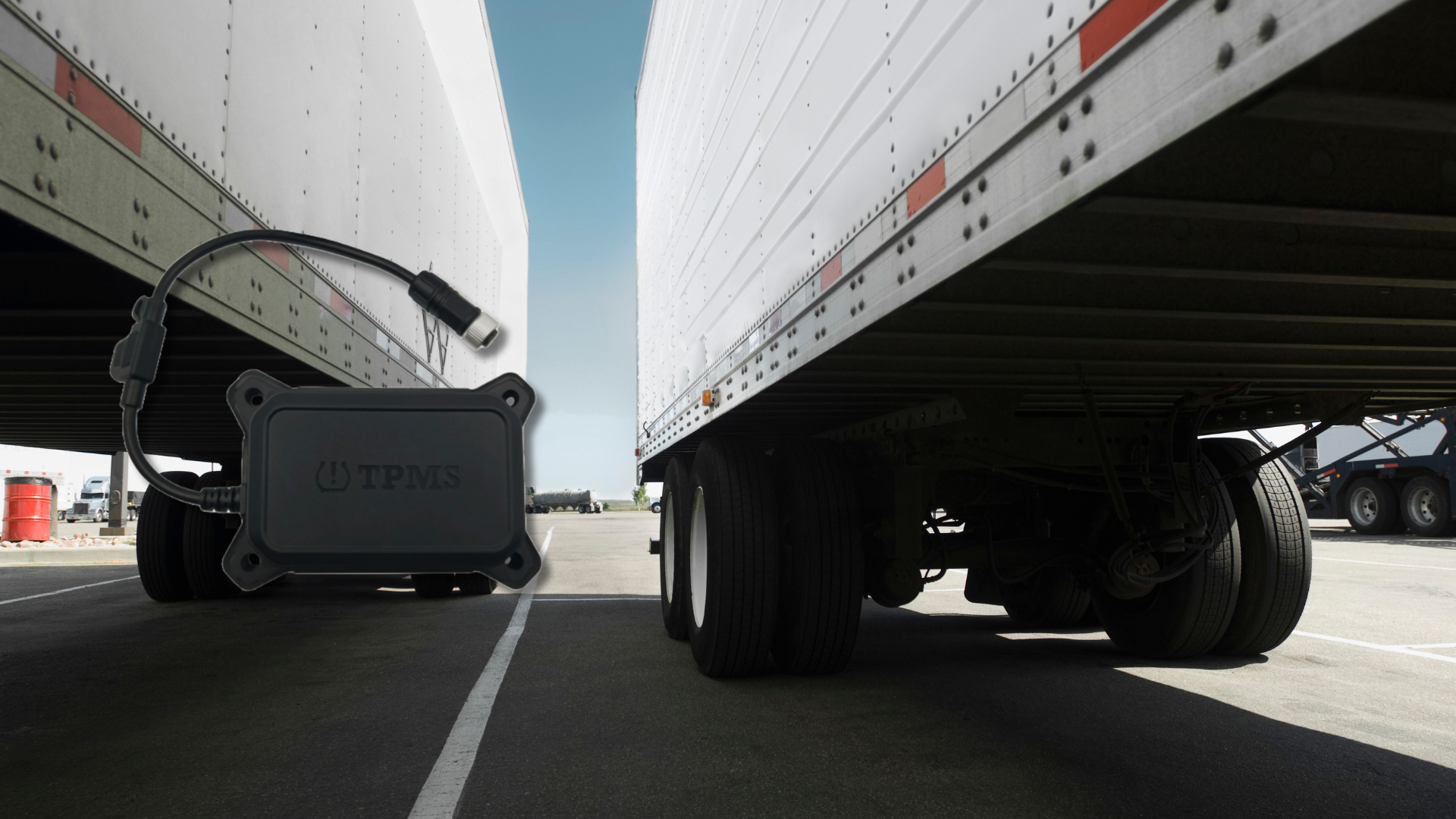

TPMS Signal Repeater - 433.92 MHz long-range RF amplifier for articulated trucks and multi-axle trailers with IP67 waterproof housing

TPMS Signal Repeater – 433.92 MHz RF Booster

Long-range repeater that amplifies sensor signals on long trucks and multi-axle trailers, ensuring stable communication from distant wheels to the receiver.

Technical Features:
IP67 waterproof housing
433.92 MHz RF amplification
–40°C to +85°C operation
24V automotive power input
Low current consumption
–95 dBm high sensitivity
Request a Quotation

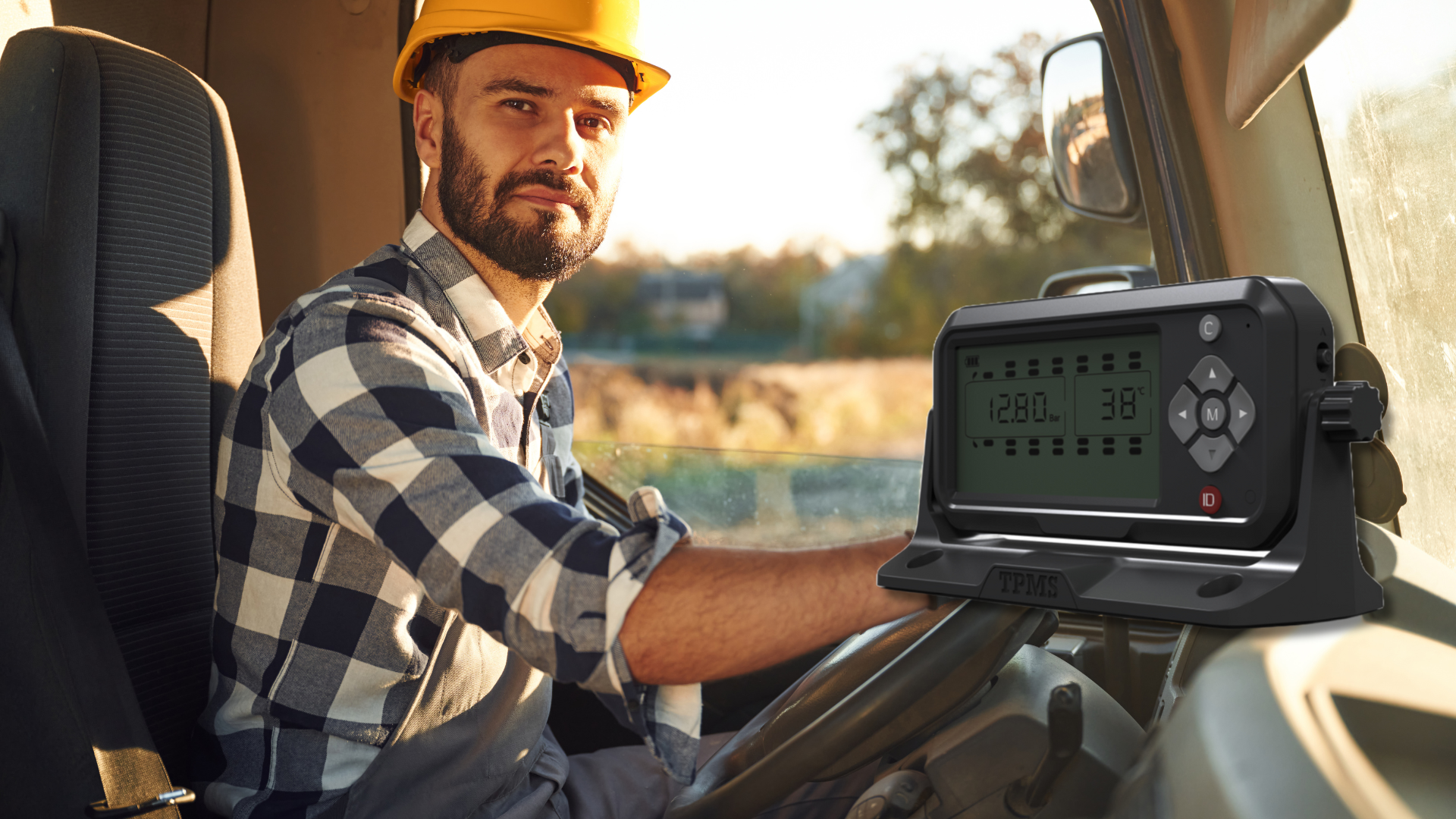

TPMS Receiver with Display - Gateway for monitoring up to 26 wheels with real-time pressure and temperature alerts for multi-axle vehicles

TPMS Receiver with Display – In-Cabin Gateway

Dashboard-mounted receiver showing real-time pressure and temperature for up to 26 wheels, delivering instant safety alerts and diagnostics for multi-axle vehicles.

Technical Features:
Monitoring for up to 26 tires
High-sensitivity 433.92 MHz RF
12V / 24V input
–30°C to +85°C operation
Compact and easy installation
Interface-ready for integrations
Request a Quotation

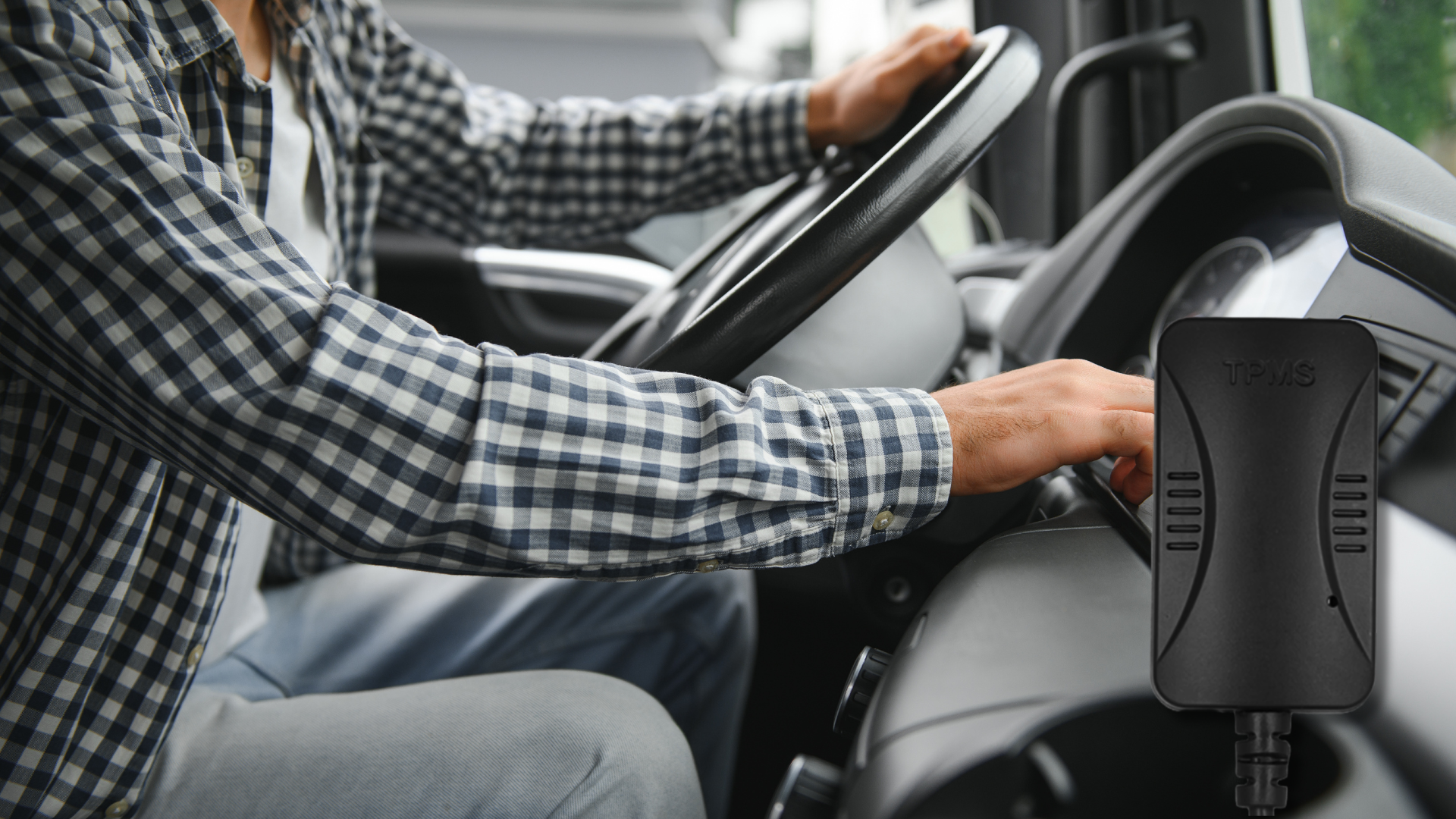

RS232 Receiver - TPMS communication interface for telematics and fleet management with 433.92 MHz reception and industrial stability

RS232 Receiver – TPMS Integration Interface

Compact TPMS gateway for telematics, OEM systems, and fleet platforms via standard RS232 communication.

Technical Features:
433.92 MHz receiver (–90 dBm)
RS232 communication output
5V–36V wide voltage input
–30°C to +85°C operation
Small footprint: 5.7 × 3.3 × 1.5 cm
Industrial-grade RF stability
Request a Quotation

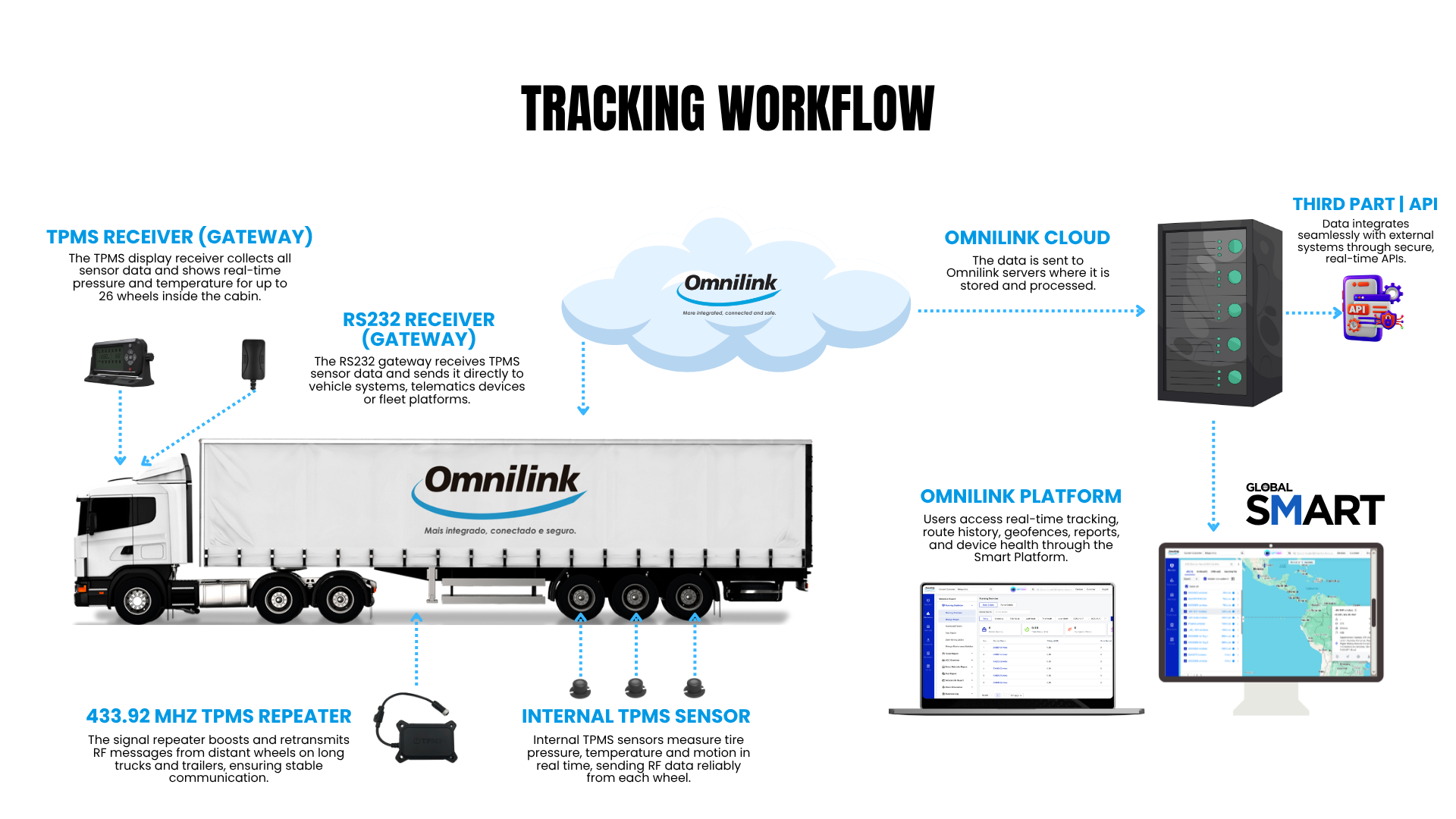

How It Works

Complete TPMS ecosystem — from internal sensors and repeaters to receivers, cloud processing, and Global Smart fleet integration.

TPMS Workflow Diagram - Complete tire monitoring ecosystem from sensors to Omnilink cloud platform and Global Smart integration

Ready to Get Started?

Contact our team to find the perfect TPMS solution for your fleet

Contact Us Today
